Bailey Approach Autograph 540 Motorhomes for Sale
Specifications, prices and stock alerts. Be first to know when one is listed.
Don't overpay for a Approach Autograph 540
Get notified when new Bailey Approach Autograph 540 listings reach the market at the right price.
Free to use. Unsubscribe anytime.
- MTPLM:
- 3500 kg
- Berths:
- 3
- Tyre size:
- 215/70 R15 LI109Q
Answer in brief
What should buyers know about the Bailey Approach Autograph 540?
RoamWorthy's maintained guide places the Bailey Approach Autograph 540 at £42,000–£58,000. There is not yet enough exact live listing evidence to present that as a current market range.
At range level, the Bailey Approach Autograph 540 sleeps up to 3, has a guide gross weight of 3,500kg, is approximately 6.0m long. Specifications can vary by model year and derivative, so verify the exact vehicle before purchase.
- Market evidence
- Maintained RoamWorthy model guide
- Prices checked
- 13 August 2026
- Specification scope
- Range-level guide; exact derivative varies
See the complete price evidence or read how RoamWorthy verifies vehicle information.
At a glance
- The Bailey Approach Autograph 540 sleeps up to 3, making it best suited to couples or smaller touring parties.
- Guide gross-weight range: 3,500kg. Verify the exact plated vehicle and licence entitlement.
- Guide length: 5.99m.
- No exact current dealer listings are available on RoamWorthy at the latest evidence check.
Quick verdict for Bailey Approach Autograph 540
Quick Verdict
Road Legal Vitals UK
Standard Licence OK
Gross weight: 3,500kg.
3
Sleeping Berths
Seatbelt data not available. Check the exact dealer listing.
Price & Engine
Guide price range
£42,000–£58,000
Typical advertised prices for a Bailey Approach Autograph 540; year, mileage, condition and specification affect value.
Cab & Chassis
Driving specs for the Bailey Approach Autograph 540
Driving Experience
The Bailey Approach Autograph 540 offers a comfortable driving experience suitable for both motorway cruising and navigating narrower roads.
About the Bailey Approach Autograph 540
The Bailey Approach Autograph 540 is a masterclass in compact luxury, expertly blending a nimble footprint with the premium specifications usually reserved for much larger motorhomes. Built upon the ultra-low profile AL-KO AMC chassis and powered by a reliable Peugeot 2.2 Hdi engine, this model offers a stable and car-like driving experience. Inside, the 'Walnut' furniture finish and polished chrome fittings create a sophisticated atmosphere, while the clever use of space allows for a fully equipped kitchen and a surprisingly spacious washroom.
Designed primarily for couples who appreciate maneuverability without sacrificing comfort, the 540 features a versatile lounge that converts into a comfortable sleeping area. The inclusion of the Alde hydronic central heating system ensures this motorhome is a true all-season vehicle, keeping you warm even during the crispest British winters. Whether you are navigating narrow coastal lanes or parked up at a premium campsite, the Autograph 540 delivers a high-end touring experience. Explore the latest Bailey Approach Autograph listings and start your next journey on RoamWorthy.
Check if you can drive this on your licence with our Motorhome Weight Checker.
Bailey Approach Autograph 540 Video Reviews
Watch Bailey Approach Autograph 540 reviews on YouTube
Opens in a new tab
Expert reviews and walkthroughs of the Bailey Approach Autograph 540
More videosInterior Layout & Sleeping Configuration
Explore the Bailey Approach Autograph 540 floorplan and discover how the space works.
Bailey Front Lounge with Drop-Down Bed layout illustration
Layout features
Sleeping capacity
About the layout
The front lounge converts to a sleeping area for up to 3 people, preserving living space during the day.
Live Bailey Approach Autograph 540 Inventory
There are no verified exact-match Bailey Approach Autograph 540 motorhomes currently available. We will tell you when one is listed.
No spam. Unsubscribe anytime.
Other Bailey motorhomes currently available
View all
2017 Bailey Autograph 79-4T Series 3
3A's Leisure

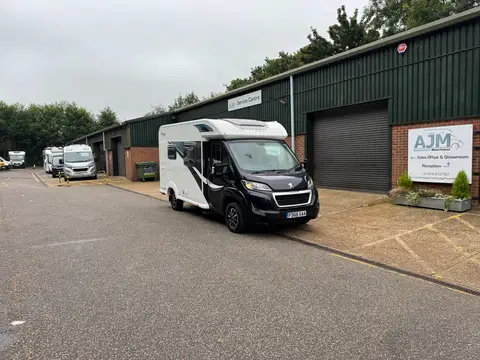

2016 Bailey Autograph
Tyne Valley Motorhomes
2020 Bailey Autograph
Brownhills Motorhomes Limited
2020 Bailey AUTOGRAPH 79/6
Marquis Motorhomes and Caravans
2017 Bailey Approach Advance 635
Motorhome Holiday Company
2016 Bailey Autograph
Tyne Valley Motorhomes
Weights
Dimensions
Accommodation
Chassis and touring
Heating and security
Bed sizes
- Front Transverse single2.250m x 0.630m (7’4” x 2’1”)
- Drop down Double (max load capacity of 200kg)1.950m x 1.540m (6’4” x 5’0”)
360 interior tour
Open the official Bailey 360 tour for the Approach Autograph 540 in a new tab.
Open 360 tour in a new tabSource: Bailey official model page. Last updated 25 July 2022.
How we assess the Bailey Approach Autograph 540
- Compiled from dealer feeds and manufacturer data. Specifications, prices, and stock sourced from verified UK dealers and brand records
- Specs vary by year, trim, and options. Weights, dimensions, berths, and equipment can differ between model years and optional packs
- Prices based on recent UK listings where available. Price ranges reflect current and recent dealer listings. Actual prices may vary by condition, year, and specification
- Always confirm before buying. Verify exact specifications, condition, and equipment with the seller or manufacturer
Practical ownership tips
Licence requirements
At 3,500kg GVW, the Bailey Approach Autograph 540 can be driven on a standard Category B car licence. Verify the plated weight matches the listing before you commit.
Payload capacity
The Bailey Approach Autograph 540 has approximately 595kg of user payload for passengers, water, gas, and personal gear. Check the actual plated weight against the unladen weight for the specific vehicle you are viewing.
Before you buy
Request a habitation check for any used unit. Check the base vehicle service history, MOT record, and whether the V5C matches the seller. For conversions, confirm the vehicle is correctly registered with DVLA.
Frequently Asked Questions
Motorhome Weight & Licence Check
Check whether you can legally drive this motorhome and understand its weight limits.
- Check licence requirements
- Understand weight limits
- Drive legally
Bailey Motorhomes
Browse Motorhomes
Learn Layout Terms
Understand A-class, coachbuilt, overcab and more
Front Lounge with Drop-Down Bed Motorhomes
Explore more
Check before you view
Canonical stock hub with strong crawl and conversion value
Check licence requirements and payload
Relevant internal destination for this page type
Comparison content supports research but carries lower commercial value
Common layouts
High-intent layout destination with strong browse depth
High-intent layout destination with strong browse depth
Relevant internal destination for this page type
High-intent layout destination with strong browse depth
Browse similar options
Useful narrowing step for users moving toward live stock
Useful narrowing step for users moving toward live stock
Useful narrowing step for users moving toward live stock
Useful narrowing step for users moving toward live stock
Useful narrowing step for users moving toward live stock
Useful narrowing step for users moving toward live stock
Is the Bailey Approach Autograph 540 a practical choice for couples?
The Bailey Approach Autograph 540 is a compact 5.99m low-profile motorhome designed for couples seeking a high-specification vehicle that is easy to manoeuvre. It features an end kitchen, corner washroom, and a convertible front lounge. With a 3,500kg MTPLM and a 595kg payload, it can be driven on a standard UK car licence while offering premium features like Alde hydronic heating and the Alu-Tech bodyshell.
- Compact 5.99m length for easier parking and navigation.
- Built on the AL-KO AMC ultra-low profile wide track chassis.
- Alde Hydronic Compact 3020 programmable radiator heating system.
- Alu-Tech bodyshell construction for thermal insulation.
- High 595kg payload capacity within a 3,500kg MTPLM.
Worth knowing: The 130 BHP engine may feel pushed when the vehicle is fully laden on steep inclines. The three-berth layout is primarily designed for couples and may feel tight for three adults. A manual six-speed gearbox is the standard transmission.
Buying a Bailey Approach Autograph 540
Who it suits
- • Couples who require a compact vehicle under six metres for easier storage and driving.
- • Drivers with a standard B licence who need a high payload of 595kg.
- • Year-round tourers who benefit from the Alde radiator heating system.
Reasons to consider it
- • It offers a premium 'Walnut' interior and high-end heating in a nimble 5.99m footprint.
- • The 2.41m width and wide-track chassis provide enhanced on-road stability.
- • The separate shower cubicle with a bi-fold door is a significant feature for a compact motorhome.
What to check
- • Verify the service history of the Peugeot 2.2 Hdi engine and the AL-KO chassis.
- • Test the Alde 3020 heating system to ensure the fluid levels and circulation are correct.
- • Inspect the Alu-Tech bodyshell seals as part of a standard damp check.
- • Confirm the operation of the Dometic 117 litre refrigerator and Thetford Duplex oven.
Worth knowing: The 130 BHP output is efficient but consider your typical cargo weight for hilly routes. The manual gearbox is the standard configuration for this Peugeot-based model.
Compare the Bailey Approach Autograph 540 with similar models
| Model | Berths | Maximum weight | Length | Typical price |
|---|---|---|---|---|
| Bailey Approach Autograph 540 | 3 | 3500 kg | 5.99 m | £42,000 to £58,000 |
| Elddis Majestic 135 | 3 | 3500 kg | 5.99 m | £42,000 to £72,500 |
| Benimar Benivan 161 | 3 | 3500 kg | 5.99 m | £45,000 to £65,000 |
The Bailey Approach Autograph 540 sits in a competitive 5.99m class alongside models like the Elddis Majestic 135 and Auto-Trail F Line F60. While all these models share the 3,500kg MTPLM and three-berth capacity, the Bailey distinguishes itself with the Alde hydronic heating system and Alu-Tech construction. The choice between them often rests on a preference for the Bailey 'Walnut' interior aesthetic versus the different layout configurations or engine outputs found in the Elddis or Auto-Trail alternatives.
Worth knowing: Specifications and prices can vary by model year, trim and optional equipment.
Ownership and Maintenance Tips
- Utilise the 595kg payload carefully to maintain the stability benefits of the AL-KO wide-track chassis.
- The 5.99m length allows for easier parking in standard bays compared to longer Autograph models.
- Ensure the Thetford Duplex anti-rattle oven is secured correctly before transit to minimise noise.
Common mistakes to avoid
- • Overlooking the specific maintenance requirements of the Alde hydronic heating fluid.
- • Assuming the 130 BHP engine will maintain high speeds easily when the 595kg payload is fully utilised.
Worth knowing: The 2.78m height is lower than many coachbuilts but still requires attention at height-restricted barriers.
Alternatives to the Bailey Approach Autograph 540
The Elddis Majestic 135 shares the 5.99m length and 3,500kg MTPLM but offers a different specification level for those seeking a dealer-special variant.
Benimar Benivan 161The Benimar Benivan 161 provides a 5.99m alternative for buyers who prefer a van-conversion style over the Bailey low-profile coachbuilt design.
Auto-Trail F Line F60The Auto-Trail F Line F60 is a modern 5.99m coachbuilt option that fits the same 3,500kg licence category with a three-berth capacity.
Data and source notes
- This page uses the maintained RoamWorthy record for the Bailey Approach Autograph 540.
- 3 model images are recorded for this page and served from RoamWorthy-hosted media.
- 2 recorded source groups are available in the source section below.
Specifications can differ by production year, trim and optional equipment.
Dealer listings are used as current marketplace evidence, not as a substitute for the exact vehicle documentation.
Worth knowing: Confirm weights, dimensions and fitted equipment for the exact vehicle before purchase or towing.
Sources and review status for the Bailey Approach Autograph 540
This page is supported by 2 recorded source groups.
- Bailey of Bristol mediamanufacturer media
- RoamWorthy maintained model catalogueeditorial database
Specifications can vary by model year, trim and optional equipment.
Read how RoamWorthy verifies model information →No Bailey Approach Autograph 540 motorhomes available
Be the first to know when one is listed
