Bailey · motorhome

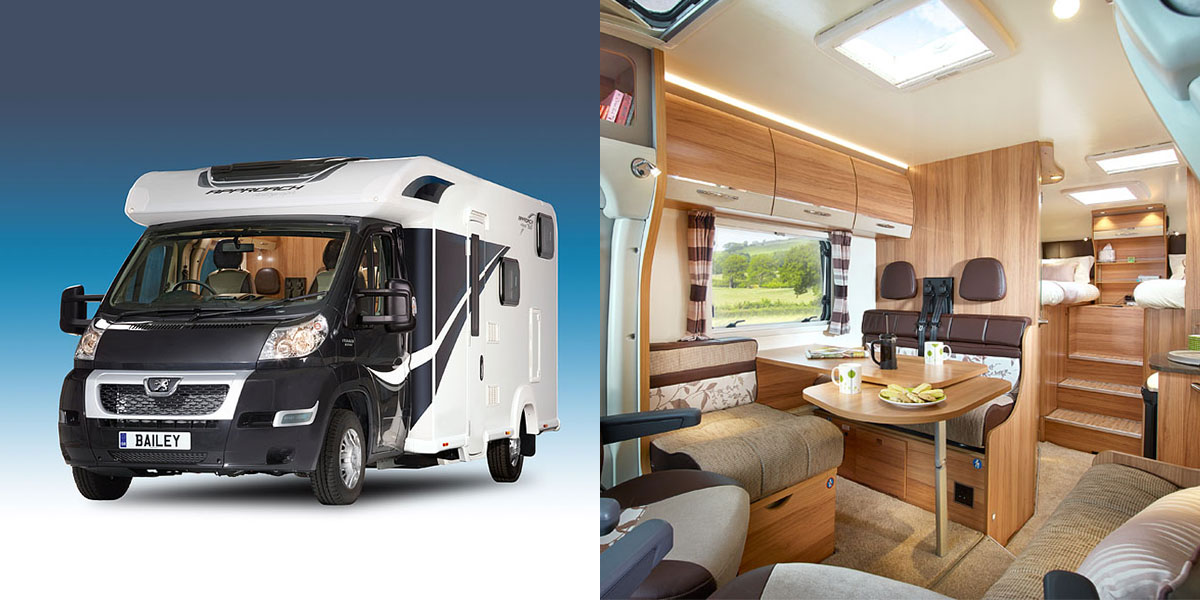

Bailey Approach Autograph 750
RoamWorthy records the Bailey Approach Autograph 750 as a motorhome. Recorded catalogue data: 4 berths; layout: End Washroom; length 7.45m; width 2.42m; height 2.71m; MTPLM 3,850kg; payload 705kg; base vehicle: Peugeot Boxer; recorded model year: 2016; recorded price range £42,000 to £62,000. No live dealer stock is currently linked to this model on RoamWorthy. Specifications can vary by model year, trim and optional equipment. Check the individual listing and manufacturer documentation before purchase.
Bailey Approach Autograph 750 key facts
- Berths: 4
- GVW: 3850 kg
- Unladen weight: 3145 kg
- Payload: 705 kg
- Length: 7.45 m
- Width: 2.42 m
- Base vehicle: Peugeot Boxer
- Observed price range: £42,000 to £62,000
Key features
- Peugeot 2.2 Hdi 130 BHP engine with six-speed manual gearbox
- Ultra-low profile wide track AL-KO AMC Chassis for superior handling
- ALDE Hydronic Compact 3020 programmable radiator heating system
- Bailey 'Walnut' furniture finish with premium polished chrome fixtures
- Dometic 103L refrigerator with versatile detachable freezer compartment
- Thetford Caprice anti-rattle combined oven, grill, and dual-fuel hob
- Fully lined separate shower cubicle with bi-fold partition doors
A premium low-profile motorhome with a high payload.
The Bailey Approach Autograph 750 is a four-berth, low-profile motorhome produced until 2016. It is characterised by its twin fixed bed and end washroom layout, built upon a Peugeot 2.2 Hdi engine and AL-KO AMC chassis. With a 3850kg MTPLM and a 705kg payload, it offers significant storage and domestic comfort, including Alde heating and a well-equipped kitchen, though it requires a C1 driving licence.
- Four-berth capacity with twin fixed beds and a front lounge layout.
- Built on the ultra-low profile AL-KO AMC chassis for handling stability.
- Equipped with the Alde hydronic heating system for year-round use.
- Substantial 705kg payload capacity for equipment and luggage.
- Full-width rear washroom with a separate lined shower cubicle.
Worth knowing: The 3850kg MTPLM requires a C1 category driving licence. A length of 7.45m may make parking in standard spaces difficult. Automatic transmission availability is limited on older model years.
Buying a Bailey Approach Autograph 750
Who it suits
- Serious motorhomers who require a high 705kg payload for long-distance touring.
- Drivers comfortable with a 7.45m vehicle length and a 3850kg MTPLM.
- Couples or small families seeking a permanent twin bed arrangement.
- Tourists who plan to travel in winter and require efficient hydronic heating.
Reasons to consider it
- The AL-KO wide track chassis provides a stable, car-like driving experience.
- High-end domestic features including a dual-fuel hob and combined oven/grill.
- Excellent thermal insulation properties combined with the Alde radiator system.
- Spacious interior feel created by the 2.42m width and low-profile design.
What to check
- Ensure the Alde 3020 heating system is fully functional for winter touring.
- Inspect the 'Walnut' furniture finish and chrome fixtures for wear.
- Verify the operation of the Dometic 103L refrigerator and detachable freezer.
- Check the bi-fold partition doors in the separate shower cubicle.
Worth knowing: Confirm the specific year's sub-design as rear lounge or fixed bed configurations can vary. Verify the presence of the 130 BHP engine and six-speed manual gearbox. Check the condition of the Dometic and Thetford kitchen appliances.
Compare the Bailey Approach Autograph 750 with similar models
| Model | Berths | Maximum weight | Length | Typical price |
|---|---|---|---|---|
| Bailey Approach Autograph 750 | 4 | 3850 kg | 7.45 m | £42,000 to £62,000 |
| Elddis Evolution | 4 | 3500 kg | 7.34 m | £45,000 to £78,000 |
| Elnagh Baron 530 | 4 | 3500 kg | 7.41 m | £42,000 to £68,000 |
The Bailey Approach Autograph 750 is a heavy-duty four-berth option with a 3850kg MTPLM, offering a higher payload than many competitors like the Elddis Autoquest 185 or Auto-Trail Imala 736, which typically sit at 3500kg. While the Bailey provides a premium Alde heating system and a 7.45m length, the alternatives from Elddis and Elnagh offer similar berth counts on a lighter chassis that does not require a C1 licence. The choice between them depends on whether the buyer prioritises the Bailey's superior payload and heating or the licence flexibility of the 3500kg alternatives.
Worth knowing: Specifications and prices can vary by model year, trim and optional equipment.
Ownership and Licence Requirements
- Utilise the 705kg payload to carry heavier items in the garage storage area.
- Regularly service the Peugeot 2.2 Hdi engine and six-speed manual gearbox.
- Monitor the Alde hydronic system fluid levels to maintain heating efficiency.
- Check the MTPLM against your driving licence using a weight checker tool.
Common mistakes to avoid
- Attempting to drive the vehicle on a standard Category B licence without C1 entitlement.
- Underestimating the 7.45m length when navigating tight corners or car parks.
Worth knowing: The 3850kg MTPLM is a critical legal consideration for UK drivers. The 2.42m width requires extra care on narrow rural roads.
Alternatives to the Bailey Approach Autograph 750
- Elddis Evolution - The Elddis Evolution offers a similar four-berth capacity but sits on a 3500kg chassis, which may be preferable for those without a C1 licence category.
- Elnagh Baron 530 - For buyers seeking a four-berth layout with a 3500kg MTPLM, the Elnagh Baron 530 provides a comparable length of 7.41m.
- Auto-Trail Imala 736 - The Auto-Trail Imala 736 provides a four-berth alternative with a 3500kg MTPLM and a slightly shorter length of 7.37m.
Data and source notes
- This page uses the maintained RoamWorthy record for the Bailey Approach Autograph 750.
- 9 model images are recorded for this page and served from RoamWorthy-hosted media.
- 2 recorded source groups are available in the source section below.
Proof notes
- Specifications can differ by production year, trim and optional equipment.
- Dealer listings are used as current marketplace evidence, not as a substitute for the exact vehicle documentation.
Worth knowing: Confirm weights, dimensions and fitted equipment for the exact vehicle before purchase or towing.
Sources and review status for the Bailey Approach Autograph 750
This page is supported by 2 recorded source groups.
- Bailey of Bristol media (manufacturer_media)
- RoamWorthy maintained model catalogue (editorial_database)
Last reviewed: 2026-07-30T10:28:57.573379+00:00
