Bailey · motorhome

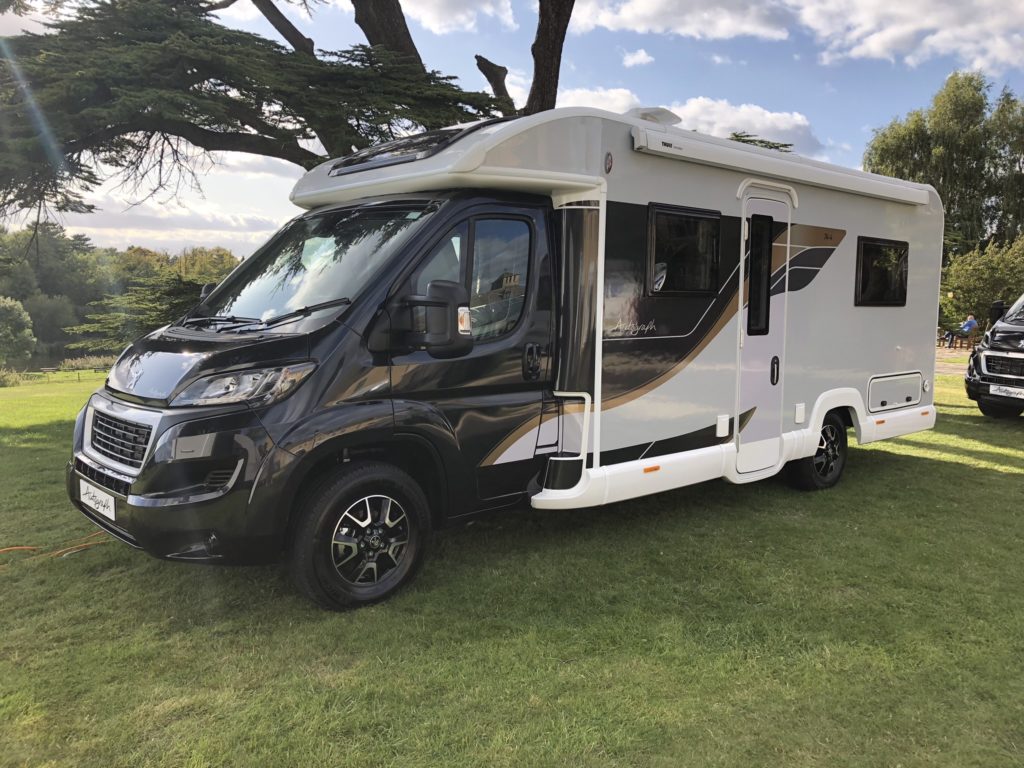

Bailey Autograph 742
RoamWorthy records the Bailey Autograph 742 as a motorhome. Recorded catalogue data: 4 berths; layout: French bed; length 7.51m; width 2.49m; height 2.71m; MTPLM 3,850kg; payload 635kg; base vehicle: Peugeot Boxer Al-Ko AMC; recorded model year: 2024; recorded price range £78,000 to £96,000. No live dealer stock is currently linked to this model on RoamWorthy. Specifications can vary by model year, trim and optional equipment. Check the individual listing and manufacturer documentation before purchase.
Bailey Autograph 742 key facts
- Berths: 4
- GVW: 3500 kg
- Unladen weight: 3215 kg
- Payload: 635 kg
- Length: 7.51 m
- Width: 2.49 m
- Base vehicle: Peugeot Boxer Al-Ko AMC
- Observed price range: £78,000 to £96,000
Key features
- High-performance Peugeot Boxer 180bhp engine with 8-speed automatic gearbox
- Alu-Tech Bodyshell with Grade III insulation for four-season touring
- Alde radiator central heating and water heating system
- Extra-wide Hartal habitation door and flush-fit Polyplastic windows
- Truma 200-watt solar panel and twin 95 Ah AGM batteries for off-grid capability
- 10-inch touchscreen infotainment system with integrated reversing camera
- Thule side-mounted wind-out awning as standard equipment
What are the core specifications of the Bailey Autograph 742?
The Bailey Autograph 742 is a 4 berth, low-profile motorhome measuring 7.51m in length. It features a fixed French bed, a rear washroom, and a front lounge. Powered by a 180bhp Peugeot engine with an automatic gearbox, it is built on an AL-KO AMC chassis and carries a 3,850kg MTPLM. Prices typically range between 78,000 and 96,000.
- 4 berth capacity with a fixed French bed and front lounge layout.
- Built on a Peugeot Boxer 2.2 litre 180bhp engine with an 8-speed automatic gearbox.
- Alu-Tech bodyshell construction with Grade III thermal insulation.
- High-specification interior featuring Alde radiator heating and a Thetford induction hob.
- Off-grid equipment including a 200-watt solar panel and twin 95 Ah AGM batteries.
Worth knowing: The 3,850kg MTPLM exceeds the standard 3,500kg limit, requiring a C1 category driving licence. At 2.49m wide, this model requires careful navigation through narrow routes.
Buying a Bailey Autograph 742
Who it suits
- Couples or small families who prioritise a permanent rear bedroom and boutique-style washroom.
- Year-round tourers who require the Grade III insulation and Alde central heating system.
- Drivers who prefer the performance of a 180bhp engine and automatic transmission.
Reasons to consider it
- High-performance mechanical specification including the 180bhp engine and AL-KO chassis.
- Generous 635kg payload for a 4 berth vehicle.
- Comprehensive standard equipment including solar power and twin batteries.
What to check
- Confirm the specific payload for your chosen unit, as the standard figure is 635kg.
- Test the 10-inch touchscreen infotainment system and integrated reversing camera.
- Inspect the Thule wind-out awning and Hartal habitation door for smooth operation.
Worth knowing: Ensure you hold the correct C1 driving licence entitlement for the 3,850kg MTPLM. The 2.49m width is broader than many standard motorhomes, which may impact storage or access.
Compare the Bailey Autograph 742 with similar models
| Model | Berths | Maximum weight | Length | Typical price |
|---|---|---|---|---|
| Bailey Autograph 742 | 4 | 3850 kg | 7.51 m | £78,000 to £96,000 |
| Adria Coral Supreme 670 DC | 4 | 3800 kg | 7.50 m | £75,000 to £105,000 |
| Mobilvetta K Yacht T Line 86 2 | 4 | 3650 kg | 7.44 m | £75,000 to £115,000 |
The Bailey Autograph 742 occupies a specific niche in the 4 berth market, balancing a 7.51m length with a substantial 2.49m width. While alternatives like the Bailey Adamo 75-4DL offer a 3,500kg MTPLM for standard licence holders, the Autograph 742 uses its 3,850kg limit to provide a higher 635kg payload and premium Alde heating. Compared to the Adria Coral Supreme 670 DC or Rapido 8066 DF, the Bailey provides a distinct British layout featuring a fixed French bed and end washroom, supported by its specific Alu-Tech construction.
Worth knowing: Specifications and prices can vary by model year, trim and optional equipment.
Ownership and Maintenance Tips
- Utilise the Grade III insulation for winter touring to maximise the efficiency of the Alde heating.
- Regularly check the flush-fit Polyplastic windows and Alu-Tech seals as part of annual maintenance.
- Make use of the integrated reversing camera when manoeuvring the 7.51m length in tight spaces.
Common mistakes to avoid
- Underestimating the 2.49m width when planning routes through rural areas or narrow gateways.
- Forgetting to monitor the twin 95 Ah AGM batteries when using the 200-watt solar panel off-grid.
Worth knowing: The 3,850kg MTPLM is a fixed limit; do not exceed this when utilizing the 635kg payload.
Alternatives to the Bailey Autograph 742
- Adria Coral Supreme 670 DC - Offers a 4 berth configuration with a 3,800kg MTPLM for those considering different European manufacturers.
- Mobilvetta K Yacht T Line 86 2 - A comparable 4 berth option with a slightly shorter 7.44m length and a 3,650kg MTPLM.
- Rapido 8066 DF - A similarly sized model worth comparing on layout, weight and price.
Data and source notes
- This page uses the maintained RoamWorthy record for the Bailey Autograph 742.
- 4 model images are recorded for this page and served from RoamWorthy-hosted media.
Proof notes
- Specifications can differ by production year, trim and optional equipment.
- Dealer listings are used as current marketplace evidence, not as a substitute for the exact vehicle documentation.
Worth knowing: Confirm weights, dimensions and fitted equipment for the exact vehicle before purchase or towing.
