Bailey · caravan

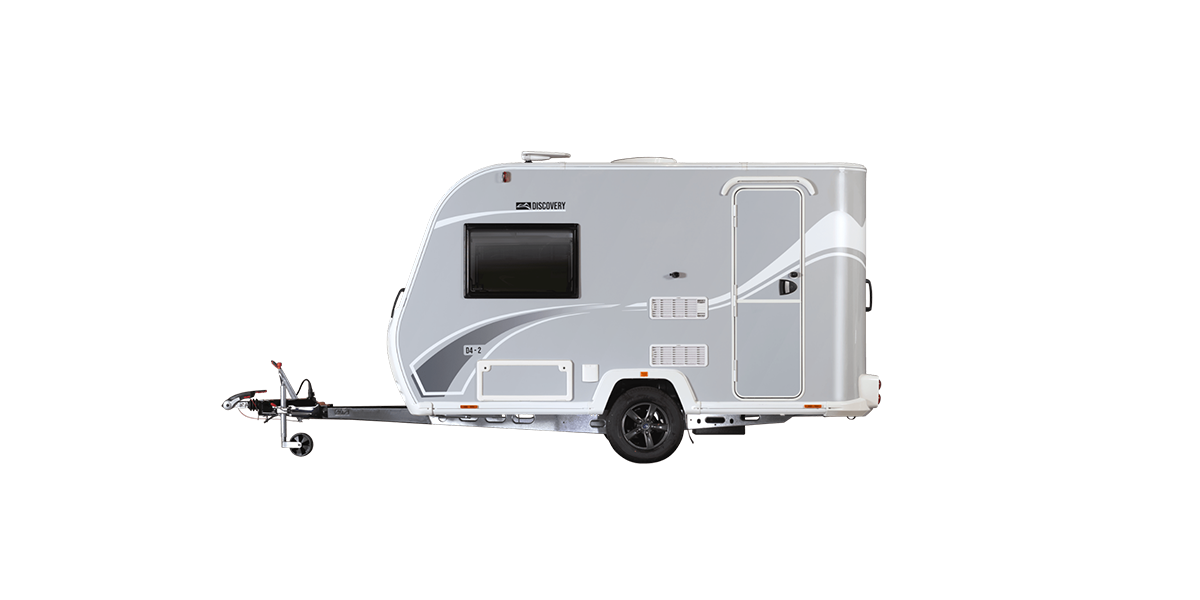

Bailey Discovery D4-2 Series 1

RoamWorthy records the Bailey Discovery D4-2 Series 1 as a touring caravan. Recorded catalogue data: 2 berths; layout: End Kitchen; length 5.62m; width 2.24m; height 2.61m; MTPLM 995kg; payload 111kg; recorded model year: 2023; recorded price range £14,500 to £18,500. No live dealer stock is currently linked to this model on RoamWorthy. Specifications can vary by model year, trim and optional equipment. Check the individual listing and manufacturer documentation before purchase.

Bailey Discovery D4-2 Series 1 key facts

Berths: 2
MTPLM: 995 kg
MIRO: 884 kg
Payload: 111 kg
Length: 5.62 m
Width: 2.24 m
Observed price range: £14,500 to £18,500

Key features

Alu-Tech bodyshell construction for superior insulation and strength
Lightweight MTPLM of 995kg suitable for a wide range of tow cars
Large opening vertical front skylight for natural light
Truma Combi heating system with digital control panel
Thetford Triplex combination oven and 3-burner gas hob
Dometic 103 litre refrigerator with 12 litre freezer
Extended A-frame designed for optional storage such as bike racks

Is the Bailey Discovery D4-2 Series 1 a practical choice for two?

The Bailey Discovery D4-2 Series 1 is a lightweight 2-berth caravan featuring a front lounge, end kitchen, and corner washroom. With an MTPLM of 995kg and a length of 5.62 metres, it is designed for ease of towing and manoeuvrability. It utilizes Alu-Tech construction and includes essential amenities like a Truma Combi heating system and a 103 litre refrigerator, making it suitable for couples seeking a compact yet fully equipped vehicle.

MTPLM of 995kg allows for towing by a wide range of smaller vehicles.
Front lounge layout converts into a double bed for two people.
Alu-Tech bodyshell construction provides insulation and strength.
Kitchen includes a Thetford Triplex oven and Dometic 103 litre refrigerator.
Extended A-frame allows for optional additions such as bike racks.

Worth knowing: The combined wet room layout means the shower and toilet share the same space. Kitchen worktop space is limited compared to larger caravan models. Payload is restricted to 111kg, requiring careful management of personal gear.

Buying a Bailey Discovery D4-2 Series 1

Who it suits

Owners of smaller tow cars or electric vehicles seeking a sub-1000kg MTPLM.
Active couples who require an extended A-frame for mounting bike racks.
Tourers who prefer a nimble 5.62 metre length for navigating tight roads.

Reasons to consider it

Aerodynamic profile and 995kg weight contribute to lower fuel consumption.
Modern interior design featuring a large opening vertical front skylight.
Compact 2.24 metre width makes it easier to store and manoeuvre.

What to check

Verify the condition of the 'Java' soft furnishings and interior upholstery.
Check the operation of the Truma Combi heating digital control panel.
Inspect the vertical front skylight for clear visibility and seal integrity.
Confirm the presence of the Thetford Triplex combination oven and 3-burner hob.

Worth knowing: The payload of 111kg must accommodate all personal belongings and optional extras. The corner washroom uses a wet room design rather than a separate shower cubicle.

Compare the Bailey Discovery D4-2 Series 1 with similar models

Model	Berths	MTPLM	Length	Typical price
Bailey Discovery D4-2 Series 1	2	995 kg	5.62 m	£14,500 to £18,500
Bailey Discovery D4 2	2	995 kg	5.84 m	£15,500 to £21,500
Swift Sprite Compact	2	1094 kg	5.37 m	£16,500 to £22,495

The Bailey Discovery D4-2 Series 1 is defined by its 995kg MTPLM and Alu-Tech construction, positioning it as a lightweight entry in the 2-berth market. When compared to the Swift Sprite Compact, it is longer at 5.62 metres versus 5.37 metres, yet maintains the same 995kg weight limit as some Discovery variants. The Lunar Ariva offers a shorter 5.2 metre length but carries a higher MTPLM of 1050kg. The D4-2 balances its compact dimensions with a full end kitchen and corner washroom, whereas alternatives like the Swift Finesse 400 provide a higher 1209kg MTPLM for those who do not require a sub-1000kg vehicle.

Worth knowing: Specifications and prices can vary by model year, trim and optional equipment.

Ownership and Maintenance Tips

Utilise the 12 litre freezer compartment for essential frozen goods during short trips.
Monitor the Truma Combi heating system settings via the digital panel for efficiency.
Make use of the front lounge conversion to maximise living space during the day.

Common mistakes to avoid

Exceeding the MTPLM by fitting heavy accessories to the extended A-frame.
Overlooking the specific cleaning requirements for the Alu-Tech bodyshell.

Worth knowing: Ensure the total weight of all loaded items does not exceed the 111kg payload. The 2.61 metre height should be noted for clearance under low structures.

Alternatives to the Bailey Discovery D4-2 Series 1

Bailey Discovery D4 2 - A similarly sized model worth comparing on layout, weight and price.
Swift Sprite Compact - The Swift Sprite Compact offers a shorter length of 5.37 metres for those requiring a smaller footprint.
Swift Sprite Compact Mover fitted - A similarly sized model worth comparing on layout, weight and price.

Data and source notes

This page uses the maintained RoamWorthy record for the Bailey Discovery D4-2 Series 1.
6 model images are recorded for this page and served from RoamWorthy-hosted media.
2 recorded source groups are available in the source section below.

Proof notes

Specifications can differ by production year, trim and optional equipment.
Dealer listings are used as current marketplace evidence, not as a substitute for the exact vehicle documentation.

Worth knowing: Confirm weights, dimensions and fitted equipment for the exact vehicle before purchase or towing.

Sources and review status for the Bailey Discovery D4-2 Series 1

This page is supported by 2 recorded source groups.

Bailey of Bristol media (manufacturer_media)
RoamWorthy maintained model catalogue (editorial_database)

Last reviewed: 2026-07-30T10:28:57.573379+00:00
